Cleaning in Place (CIP) with Jumo
- Ryan Howes
- Mar 27
- 6 min read
Nowadays, Cleaning in Place (CIP) is the standard cleaning method in the food processing and pharmaceutical industry. CIP is a process during which cleaning and disinfecting solutions circulate and in which the production and bottling equipment is cleaned without dismounting. The precise combination of factors such as chemicals, temperature, mechanical equipment, and time makes cleaning a reliable and reproducible process. CIP cleaning minimizes the risk of contamination and cross-contamination, thereby ensuring product safety at all times.
How you can reduce the use of your resources through perfect conductivity measurement.
The change of cleaning medium during CIP cleaning is measured by the conductivity of the cleaning solutions. After cleaning with lye, for example, the entire system is rinsed with water. By using the JUMO tecLine Ci conductivity sensor you can pinpoint the time at which the lye has been completely washed out of the plant. This way, the rinsing process can be reduced to the necessary time and thereby also the water consumption.
How to find the right device – tailored to your particular application.
Thanks to the way in which your system is created, the various evaluation devices can be adapted to every application. The JUMO AQUIS touch series devices, to which up to 4 analysis sensors can be connected, are the ideal solution for mobile systems and stand-alone units. For systems with a connected PLC, the JUMO CTI-750 head transmitter is the device to use.
How you are always up to date through reliable data recording.
To further optimize your process, would you like to reliably register and monitor your data over the long term? The integrated recording function of our JUMO AQUIS touch series helps you reliably record, monitor, and optimize your data. The web server function, for example, will notify you immediately in the event of a malfunction or failure.
Your benefits in a nutshell:
The solution especially designed by JUMO for CIP cleaning gives you control over all aspects of cleaning. You have reproducible conditions, remain flexible, and also reduce your resource use.
AQUIS touch S - Modular multichannel measuring device (liquid analysis)
Measuring – displaying – controlling – recording: these 4 functions are brought together in one unique and innovative deviceThe product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate.
21 additional measuring signals can be connected
4 analysis inputs in any combination
17 configurable switching outputs
5.5" touchscreen; 14 inputs and outputs that are part of the standard equipment; 13 slots for input and output modules; modular design; customer-specific process screen; data monitor, recording function, web browser with online visualization; timer functions; math and logic functions; setup program, PC Evaluation Software (PCA3000), PCA Communication Software (PCC); calibration routines, calibration logbooks, calibration timer; up to 6 additional JUMO digiLine sensors can be connected; Modbus master function
Suitable for universal use; water and wastewater engineering; food and beverage industry (CIP/SIP); pharmaceuticals and biotechnology (USP, ASTM); drinking water technology, desalination of seawater; process technology (rinsing baths, electroplating plants, cooling tower control, gas/air washer); swimming pool technology
AQUIS touch P - Modular multichannel measuring device (liquid analysis)
The product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate.
2 analysis inputs in any combination
10 configurable switching outputs
15 additional measuring signals can be connected
3.5" touchscreen; 10 inputs and outputs that are part of the standard equipment; 7 slots for input and output modules; modular design; customer-specific process screen; data monitor, recording function, web browser with online visualization; timer functions; math and logic functions; setup program, PC Evaluation Software (PCA3000), PCA Communication Software (PCC); calibration routines, calibration logbooks, calibration timer; up to 6 additional JUMO digiLine sensors can be connected; Modbus master function
Suitable for universal use, water and wastewater engineering; food and beverage industry (CIP/SIP); pharmaceuticals and biotechnology (USP, ASTM); drinking water technology, desalination of seawater; process technology (rinsing baths, electroplating plants, cooling tower control, gas/air washer); swimming pool technology

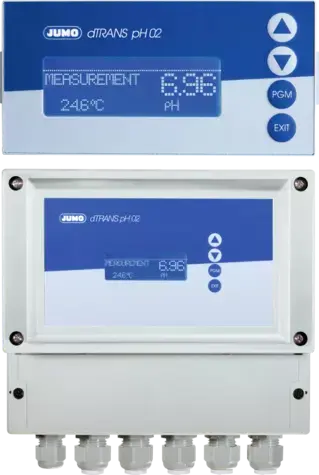

dTRANS pH 02 - Compact multichannel transmitter and controller
The product controls and records the pH and redox values, ammonia concentrations, temperatures, and flow rates. It can be used as a two-state, three-state, three-step, or as a continuous controller (e.g. for detoxifications).
Easy-to-use programming
13 integrated user languages
Choice of display visualizations
Math and logic module, wash timer for controlling of cleaning facilities, calibration logbook
Ultra-compact shape; multilingual operation with plain text; modular design; variable measured value display; P, PI, PD, and PID control functions
JUMO flowTRANS MAG I01 - Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
Minimal installation effort
Configurable switching outputs
Standardized fittings
JUMO flowTRANS MAG I02 - Plug-in magnetic-inductive flow transmitter
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
High degree of functionality
Illuminated LCD display
Minimal installation effort
OPTIFLUX 2000 - Electromagnetic flowmeter
The OPTIFLUX 2000 is an electromagnetic flowmeter (EMF) for water and wastewater applications which has many drinking water approvals.
Meets drinking water standards
Wear and maintenance free
Wide dynamic measuring range
OPTIFLUX 6000 - Electromagnetic flowmeter
The OPTIFLUX 6000 is an electromagnetic flowmeter (EMF) for hygienic applications in the food sector. The 3A and EHEDG certified flowmeter has industry-specific insertion lengths to meet the stringent requirements of the food and beverage industry.
3A, EHEDG, FDA & EC1935/2004 compliant
Opt. stainless steel case/separated/compact
Extensive error diagnostics
cti-750 - Inductive conductivity transmitter with switching contacts
The device is used for measuring and controlling the conductivity or the concentration of liquid media. The integrated temperature measurement enables precise and quick temperature compensation. Additional functions allow for optimum use in CIP processes.
Activation of 4 measuring ranges
A fast-response temperature sensor
Concentration measurement
DELOS S02 - Innovative precision pressure transmitter with display
The device is used to acquire relative and absolute pressures in liquid and gaseous media. The measuring ranges are between 0.1 to 100 bar relative or 0.4 to 60 bar absolute. In addition to high process reliability and a rotatable housing, the JUMO DELOS S02 stands out with its real-time data transmission via Single Pair Ethernet or IO-Link interface. The intelligent pressure sensor is configured via Bluetooth with the JUMO smartCONNECT app.
Simple configuration
High degree of process reliability
High degree of accuracy
dTRANS p30 - Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
High degree of process reliability
Long-term stability
High overload resistance
JUMO tecLine Ci – hygienic inductive conductivity and temperature sensor
The sensor detects the electrolytic conductivity of a process fluid and works in accordance with the inductive measurement principle. An integrated, fast-response temperature probe detects the process temperature at the same time. The overall construction of the sensor complies with the EHEDG specifications. The joint and gap-free design as well as high quality of the finish allow it to meet the highest standards for hygienic processes. Because the sensor measures inductively, it is practically maintenance-free compared to the conductive measurement method. Deposits, grease films, or oil films on the surface of the sensor have virtually no effect on measuring accuracy. The JUMO tecLine Ci sensor is designed for connection to the JUMO AQUIS 500 Ci and JUMO CTI-750 transmitters as well as the JUMO AQUIS touch S and P multichannel measuring devices.
JUMO tecLine HY – Redox combination electrodes
The electrode acquires the redox potential of water and aqueous-based media. This robust electrode is suitable for demanding and hygienic applications in the process industry. JUMO tecLine HY redox electrodes have a high-quality zirconium dioxide diaphragm.
Certified biocompatibility
Low diffusion potentials
Internal pressure buffer
